mini-FROG - Float Switch
mini-FROG – Float Switch is a smaller version of its predecessor, the FROG. It is ideal for compact spaces and like FROG is used for level measurement in applications such as reservoirs and tanks
The mini-FROG - Float Switch

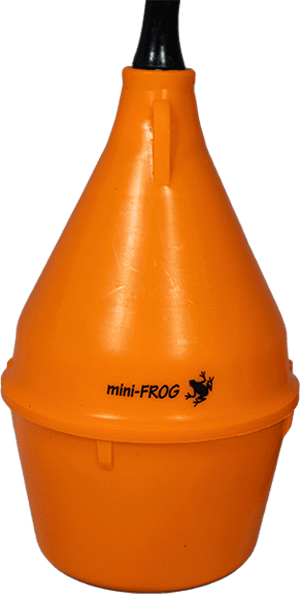

mini-FROG from ACOWA INSTRUMENTS is a standard float switch like FROG with a micro switch for either a Normally Open (NO) or a Normally Closed (NC) status signal. This float switch is a top choice among businesses as it offers an efficient and reliable liquid level sensing.
Firstly, one of the notable advantages of the mini-FROG is its reduced size and heightened sensitivity to its surroundings. This allows for extremely accurate measurements in compact spaces.
Furthermore, the mini-FROG has an exceptional robust design – constructed of high-quality materials. This means it can withstand harsh environments and extreme conditions. Consequently, reducing frequent repairs.
mini-FROG provides versatile use
Moreover, mini-FROG presents a wide range of posibilities in use. Namely mini-FROG is used as a high water level alarm in pump stations, low water level alarm in clean water tanks, water on floor alarm, as a controlling switch for pumps as well as other functions.

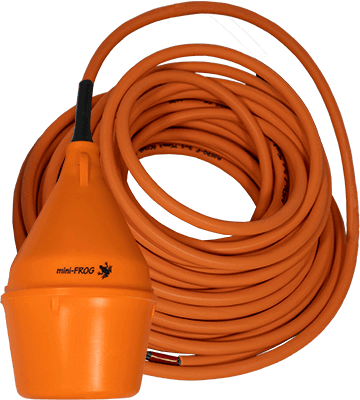

Lastly, this float switch is delivered in versions with a 5m fixed-mounted high-flexibility cable. A mounting bracket is included.
Read more about the mini-FROG - Float Switch
Lastly, for more info about the mini-FROG in a country near you, go to our:
SPECIFICATIONS
| Contact system | Microswitch |
| Voltage | Max 250V AC |
| Max. rated current | 6A Resistive, 3A inductive |
| Pressure range | 200kPA |
| Cable length | 5m |
| Largest diameter | 65mm |
| Temperature coefficient of span | 13mm, 19mm = 0,015% of FS at 25°C 16mm = Better than 2% |
| Length of floating element | 120mm |
| Tilting material | Polypropylene (PP) |
| Cable material | PUR |
| Enclosure class | IP68 |
| Max. operating temperature | +55°C |
| Buoyancy | 6N |
| Certificate | CE |
| Product number | Description |
|---|---|
| mini-FROG | mini-FROG float switch with 5m cable. NC + NO function |
| mini-FROG weight | Counterweight for mini-FROG |
ACOWA mini-FROG is highly versatile and is used in countless applications, such as:
- Pumping stations
- Sewage treatment plants
- Stormflow
- Level Alarm
- Reservoir and tanks
