FROG - Float Switch from ACOWA INSTRUMENTS
FROG – Float Switch is used as a high water level alarm in pump stations among other things
Long-lasting performance with the FROG - Float Switch
The FROG from ACOWA INSTRUMENTS is a standard float switch with a micro switch for either a Normally Open (NO) or a Normally Closed (NC) status signal. When it comes to efficient and reliable liquid level sensing, this float switch stands out as a top choice.
Firstly, one of the key advantages of the FROG is its exceptional durability. Constructed using high-quality materials, this switch is built to withstand harsh environments and extreme conditions. Consequently, it ensures long-lasting performance and reduces the need for frequent replacements or repairs.
FROG provides versatile use
Moreover, FROG offers versatility in use. E.g. FROG is used as a high water level alarm in pump stations, low water level alarm in clean water tanks, water on floor alarm, as a controlling switch for pumps and many other functions.

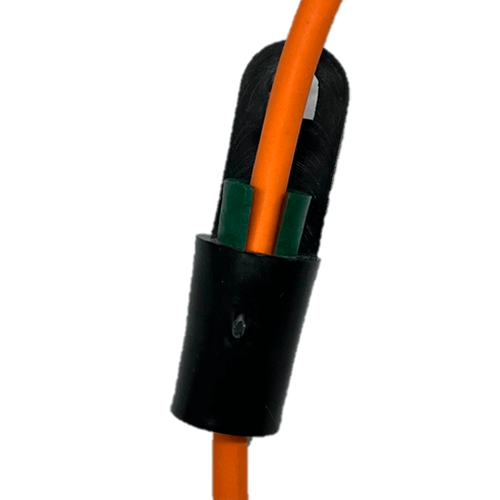

Also, this float switch is delivered in versions with a 10m or 20m fixed-mounted high-flexibility cable. A mounting bracket is included in both versions.
Read more about the FROG - Float Switch
Lastly, for more info about the FROG in a country near you, go to our:
Additionally, for danish speaking people – feel free to visit:
SPECIFICATIONS
| Contact system | Microswitch |
| Voltage | Max 250V AC |
| Max. rated current | 6A Resistive, 3A inductive |
| Pressure range | 200kPA |
| Cable length | 10m/20m |
| Largest diameter | 99mm |
| Length of floating element | 13mm, 19mm = 0,015% of FS at 25°C 16mm = Better than 2% |
| Temperature coefficient of span | 140mm |
| Tilting material | Polypropylene (PP) |
| Cable material | PUR |
| Enclosure class | IP68 |
| Max. operating temperature | +55°C |
| Buoyancy | 6N |
| Certificate | CE |
| Product number | Description |
|---|---|
| FROG-10-PUR | FROG float switch with 10m cable. NC + NO function |
| FROG-20-PUR | FROG with 20m cable. NC + NO function |
| FROG weight | Counterweight for FROG |
ACOWA FROG is very flexible and is used in various applications, such as:
- Pumping stations
- Sewage treatment plants
- Stormflow
- Level Alarm
- Reservoir and tanks
